RIC320
Designed to handle demanding control applications, the RIC320 embedded controller  is optimized for the Dallas Semiconductor DS80C320. The RIC-320's flexible design allows the user to work with only the features needed, but to expand as the application demands. The RIC accepts standard input / output modules from a variety of manufacturers (for example, Grayhill or Opto 22) by way of two 50 pin headers. The users may access the same I / O by way of terminal blocks. The RIC320 has keypad and LCD interfaces with software drivers in C and assembly. The keypad interface will run up to a 40 button pad, and the LCD interface up to a 4 line by 40 character LCD display. The board accepts any 40 pin dip 8051 including the 83C51, 87C51, Intel 8052 Basic chip, and the DS5000 series.

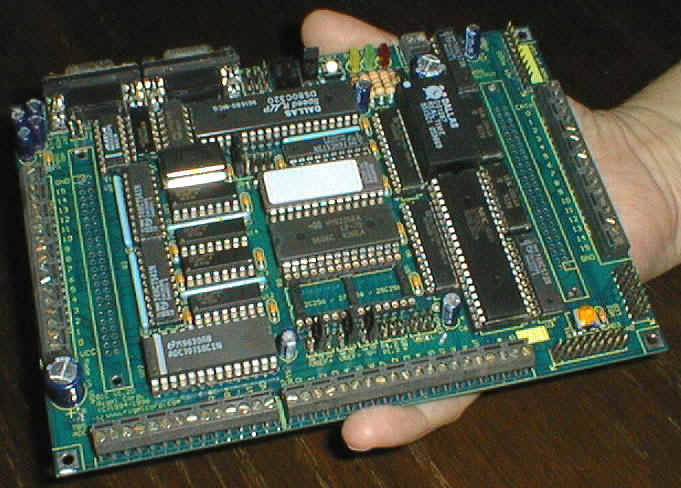

Hardware Overview  ric.jpg (51077 bytes)
(Download User's Manual)
  • DS80C320 Microcontroller (or a compatible 40 pin dip 8051 chip)
  • 32K EPROM
  • 32K RAM / optional battery backed RAM
  • Optional additional 32K EEPROM / RAM
  • 8, 10, or 10 bit with sign A / D converter (ADC10158)
  • Real-time clock / calendar (DS14287)
  • Operating speed up to 40MHz
  • 2 Serial ports (RS232 and RS232 or RS422 or RS485 with networking capabilities)
  • 16 bits TTL I / O
  • 16 bits of opto-isolated inputs
  • 16 bits of high-voltage / high-current outputs
  • Terminal blocks to access the I / O
  • Standard 50-pin headers to drive industrial input / output modular boards (Grayhill, Opto 22)
  • LCD and keypad interfaces with software drivers in C and Assembly
  • Power supplied to the board by way of 2 position terminal blocks
  • Power on LED
  • Board operates on +5 volts
  • Power consumption is less than 150mA fully populated
  • 6 layer board with separate ground and VCC planes for industrial noise immunity
  • Operating temperature 0 to 70C (optional extended temperature range)

Program the RIC320 using Assembly, Basic, C, and Forth. An integrated assembly language environment with example software programs in C and Assembly come with the RIC320.

Software Overview
Reads51
Reads51 is an integrated applications software development system, which runs on an IBM PC or compatible host. Reads51 allows writing, compiling, assembling, debugging, downloading, and running applications software in the MCS-51 language. Reads51 contains a C compiler, relative assembler, linker/locator, editor,  chip simulator, assembly language debugger, and host-to-board communications in a user-friendly, menu-driven environment.

Documentation for our products includes a review of the software and hardware, sample programs, a description of the inner workings of the RROS including user-accessible system calls, and a full set of circuit diagrams.

Standard Package includes: The RIC-320, 32K EPROM, 32K RAM, Reads software, User's Guides for board and software (download from the web), example programs, software tutorial.

A well-regulated 5-volt (5% @500mA) power supply, and serial cable is to be provided by the user.

Schools, Students (with valid school ID), and US military personal receive a 10% discount on all products.

RIC320 Options Built and Tested
  1-9 10-24
RIC320 Bare Boards $ 30
RIC320 with AT89C52 $ 185 $ 170
RIC320 with Basic $ 190 $ 180
RIC320 with DS 80C320 $ 190 $ 180
RIC320 with DS89C420 $ 200 $ 190

The RIC320 is available with other processors, different clock speeds, and extended temperature range chips. Please call us for pricing information on the options you prefer.
